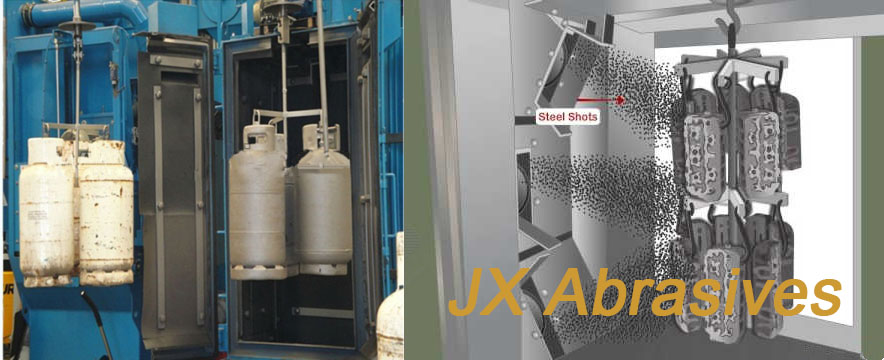

Hook Type Automatic Shot Blasting Machine For Oil Tank Propane Tank
Key Specifications / Features
Model No.: JX- RCBM-05 Hits: 690
Buy Hook Type Automatic Shot Blasting Machines From JX Shot Blasting Machine Factory in China For Oil Tank, Propane Tank Surface Preparation Cleaning.
Request a quote
Tags:
Detail Information
Application:
Hanger Shot Blasting Machine is mainly used to clean and strengthen the surface of steel structural parts, casting parts, aluminum alloy parts and other spare parts.
It’s widely used in forging industry, forging machinery, iron and steel industry.
Machine Details:
Hanger Shot Blasting Machine is mainly used to clean and strengthen the surface of steel structural parts, casting parts, aluminum alloy parts and other spare parts.
It’s widely used in forging industry, forging machinery, iron and steel industry.
Machine Details:
Pass Through Hook Type Shot Blasting Machine is suitable for bulk of large pieces of machinery and steel structure to make surface cleaning and blasting strengthen to remove the welding slags and surface oxide; it also used for surface cleaning and strengthening for heat-treated pieces; and it's used for fear, gear shaft, engine connecting rod, diaphragm spring, cannonball inner shell and other parts surface descaling after heat-treating to make the surface of work pieces to reach the color of silver-gray, and eliminate stress, improve surface adhesion of the coating; increase the surface stress, improve fatigue strength to reach the aim of blasting strengthen.
Technology Parameter(Customized is available):
We will recommend you the right machine according to the work piece and your requirement.
| Hook Type Automatic Shot Blasting Machine For Oil Tanks | ||||||
| No | Item | unit | DX-7 | DX-9 | DX-10 | DX-14 |
| 1 | Size of cleaning piece | mm | Ø700* 1120 |
Ø900*1600 | Ø1000*1850 | Ø1400*2300 |
| 2 | Carrying weight of single hook | kg | 600 | 1000 | 1000 | 2000 |
| 3 | Abrasive Volume | Kg/min | 2*180 | 2*250 | 2*250 | 2*250 |
| 4 | Elevating capacity | T/h | 16 | 24 | 33 | 48 |
| 5 | Separating capacity | T/h | 16 | 24 | 33 | 48 |
| 6 | Ventilation capacity | M3/h | 5000 | 8000 | 9000 | 15000 |
| 7 | Power(excluding dedusting) | kw | 19 | 32.5 | 36.55 | 61.27 |
These Type of Machines consist of under mentioned Parts:
1. Main Blast Cabinet with inspection Door.
2. Blast Wheel Units with Drive Mechanism.
3. Abrasive circulation unit.
4. Bucket Elevator unit.
5. Abrasive Separation/Cleaning system with Storage Hopper
6. Dust Collector with Cleaning Mechanism.
7. Roller Conveyor system at Inlet & Outlet Side.
8. Control Panel with PLC Control System.
JX Shot Blasting Machine offers upgraded transport technology, high-efficient blast wheels and multiple machine sizes and types adhere to the customer’s shot-blasting needs. If you have special requirements, please download Blasting Equipments Questionnaire for your reference.
