Short Description
 Model No.: JX- RCBM-14    Hits: 32
Steel Pipe Outer Wall Shot Blasting Machine Supplier JX Provides Steel Pipe Outer Wall Shot Blasting Machine with Motorized Roller Conveyor.

Key Specifications / Features

JX Roller Conveyor Shot Blasting Machines are used in different fields such as steel structure works, pipes, profiles and plates, and has continuous shot blasting capability and motorized roller conveyors.

Features:
1. Compact design, simple operating principle.
2. Excellent blast performance.
3. Great service life.
4. Tough, hard wearing, manganese blast cabinet.

Applications:
1. Structural Steel.
2. Mill Scale Removal.
3. Profiling.
4. Paint Preparation.

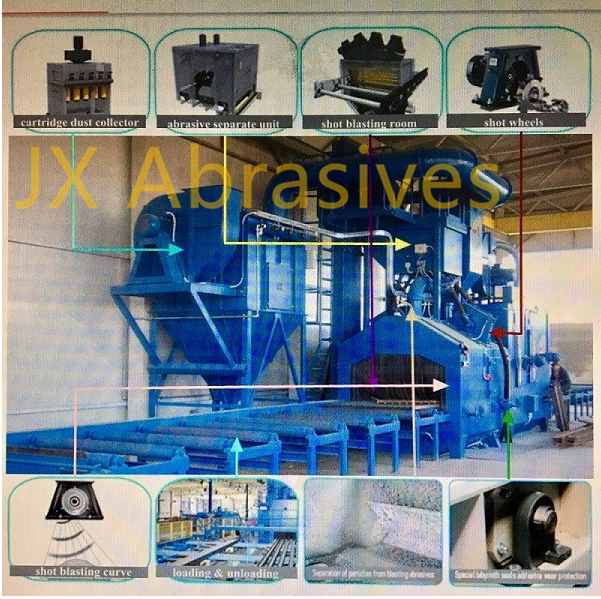

steel-pipe-outer-wall-shot-blasting-machine-with-roller-conveyor

These Type of Machines consist of under mentioned Parts:
1. Main Blast Cabinet with Inspection Door.
2. Blast Wheel Units with Drive Mechanism.
3. Abrasive Circulation Unit.
4. Bucket Elevator Unit.
5. Abrasive Separation/Cleaning System with Storage Hopper.
6. Dust Collector with Cleaning Mechanism.
7. Roller Conveyor System at Inlet & Outlet Side.
8. Control Panel with Siemens Brand PLC Control System

Technical Parameters:
2.1   Size of Chamber
width :     1400mm
height :     1400mm
2.2   The Roller Conveying System
working speed :        1.0-5m/min
reducer power :        3kw
distance with each roller:  6000mm x 2
reducer motor style :           BWY22-187-3
conveyor length:        850mm
2.3   Blast Nozzles(6 sets)
model:                  Q034II
rotating speed:            8--70mm/s
max.volume for blasting:   6×250kg/min
power :                  6 x 15kw
2.4  Bucket Elevator
lifting capacity :             90t/h
power :                   7.5kw
2.5  Separator
separating capacity :          90t/h
air speed in separating area:      4-5m/s
power :                     4kw
2.6  Portrait Screw Conveyor
delivery capacity :             90t/h
power :                     5.5kw
2.7  Horizontal Screw Conveyor
delivery capacity:              90t/h
power:                     4kw
2.8  Air Blower
power:                    11kw
2.9  Dust Removing System
 1)  Dust Collector
    model:         filter cartridge dust collector
   air capacity :    20500m3/h x 2set
 2) Air blower for Separator
model:              4-72-5A
power:               18.5KW x 2
air volume:             20500m3/h x 2
air pressure:             1400Mpa
2.10   Total Power :        about 150kw
2.11  Total Air Volume :     20500m3/h
2.12  Layout(max.size) :   18000 x 5050 x 7930mm
Height above the ground :    6600mm
Depth below the ground :     1390mm
2.13   Quality Grade
surface quality  :          Sa2-Sa2.5(GB8923-88)
surface roughness :         15~50um(GB1031-83)
2.14   Equipment Noise(area) Operation      ≤95dB


jx-abrasives-standard-direct-drive-blast-wheel-with-high-performance
JX Shot Blasting Machine offers upgraded transport technology, high-efficient blast wheels and multiple machine sizes and types adhere to the customer's shot-blasting needs. If you have special requirements, please download Blasting Equipment Questionnaire for your reference.
