Steel Plate Shot Blasting Machine
Key Specifications / Features
Model No.: JX- RCBM-03 Hits: 984
Buy Steel Plate Shot Blasting Machine from JX Abrasives Manufacturer in China, excellent performance, compact design, simple operation.
Request a quote
Tags:
Next: Steel Structure Shot Blasting Machine
Previous: Steel Plate Preservation Line
Detail Information
JX Steel plate shot blasting machine is an automatic blasting machine for steel plates, sheets and strips.
Automatic loading and unloading, automatic blasting, automatic dust collection, automatic abrasive media reclaim system.
Typical Application:
1. Structural Steel.
2. Mill Scale Removal.
3. Profiling.
4. Paint Preparation.
Machine Details:
These Type of Machines consist of under mentioned Parts:
1. Main Blast Cabinet with Inspection Door.

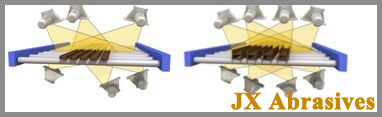

2. Blast Wheel Units with Drive Mechanism.
3. Abrasive Circulation Unit.
4. Bucket Elevator Unit.
5. Abrasive Separation/Cleaning System with Storage Hopper.
6. Dust Collector with Cleaning Mechanism.
7. Roller Conveyor System at Inlet & Outlet Side.
8. Control Panel with PLC Control System.
Technology Parameter(Customized is available):
This machine is not a standard machine, any parameters can be customized according clients’ requirements, so any further information please contact with us, our skilled engineer team will give you the most professional and cost-effective solutions.
JX Shot Blasting Machine offers upgraded transport technology, high-efficient blast wheels and multiple machine sizes and types adhere to the customer’s shot-blasting needs. If you have special requirements, please download Blasting Equipments Questionnaire for your reference.
Automatic loading and unloading, automatic blasting, automatic dust collection, automatic abrasive media reclaim system.
Typical Application:
1. Structural Steel.
2. Mill Scale Removal.
3. Profiling.
4. Paint Preparation.
Machine Details:
These Type of Machines consist of under mentioned Parts:
1. Main Blast Cabinet with Inspection Door.
2. Blast Wheel Units with Drive Mechanism.
3. Abrasive Circulation Unit.
4. Bucket Elevator Unit.
5. Abrasive Separation/Cleaning System with Storage Hopper.
6. Dust Collector with Cleaning Mechanism.
7. Roller Conveyor System at Inlet & Outlet Side.
8. Control Panel with PLC Control System.
Technology Parameter(Customized is available):
| Steel Plate Shot Blasting Machine | |||||||
| Item Type | DX698 | DX6912 | DX6915 | DX6920 | DX6925 | DX6930 | DX6940 |
| Width of work piece(mm) | ≤800 | ≤1200 | ≤1500 | ≤2000 | ≤2500 | ≤3000 | ≤5000 |
| Height of work piece (mm) | ≤300 | ≤400 | ≤500 | ≤600 | ≤600 | ≤650 | ≤650 |
| Cleaning rate (m/min) | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
| Shot blasting rate(kg/min) | 4*125 | 4*125 | 4*200 | 6*250 | 6*250 | 6*250 | 8*25 |
JX Shot Blasting Machine offers upgraded transport technology, high-efficient blast wheels and multiple machine sizes and types adhere to the customer’s shot-blasting needs. If you have special requirements, please download Blasting Equipments Questionnaire for your reference.
