Short Description
 Model No.: JX- RCBM-04    Hits: 727
Buy Steel Structure Shot Blasting Machine from JX Abrasives Manufacturer in China, paint preparation, for blasting steel structure, steel profiles.

Key Specifications / Features

JX Roller conveyor for steel structure mainly used to do blasting to steel structure, profile steel and so on.
Structural Steel Shot Blasting Machine is used to remove scale, rust and paint from long and/or flat components.
The Structural Steel Shot Blasting Machine designed was fitted with our heavy-duty turbine system, which generates significant operating cost reductions due to faster throughput times, as well as reductions in shot-blasting media consumption and energy requirements.

Typical Application:
Rust and heat scale removal
Paint stripping
Surface texturing
Preparation for painting, bonding and plating
Deburring, deflashing
Cleaning

Machine Details:

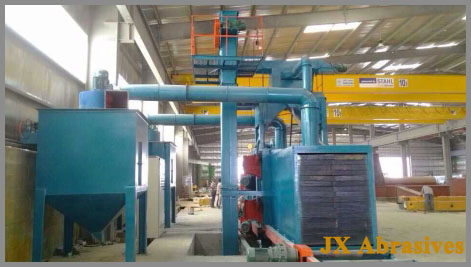

Steel Structure Shot Blasting Machine Steel Structure Shot Blast Machine

These Type of Machines consist of under mentioned Parts:
1. Main Blast Cabinet with inspection Door
2. Blast Wheel Units with Drive Mechanism.
3. Abrasive circulation unit
4. Bucket Elevator unit
5. Abrasive Separation/Cleaning system with Storage Hopper
6. Dust Collector with Cleaning Mechanism.
7. Roller Conveyor system at Inlet & Outlet Side.
8. Control Panel with PLC Control System.

Technology Parameter(Customized is available):
Steel Structure Shot Blasting Machine
Parameter Unit DX0816 DX1018 DX1220 DX1520 DX2020 DX2025
The effective cleaning width mm 800 1000 1200 1500 2000 2000
The room feed-in size mm 1000x1750 1200*2000 1400*2200 1700*2200 2200*2200 2200*2700
The length of cleaning workpiece mm 3000-15000 3000-15000 3000-15000 3000-15000 3000-15000 3000-15000
The speed of wheel conveyor m/min 0.5-4 0.5-4 0.5-4 0.5-4 0.5-4 0.5-4
The thickness of cleaning steel sheet mm 5-60 5-60 5-60 5-60 5-60 5-60
The width and height of workpiece mm 800*1600 1000*1800 1200*2000 1500*2000 2000*2200 2000**2500
The quantity of shot blasting Kg/min 8*180 8*240 8*240 12*240 12*240 12*240
The first enclosed quantity Kg 4000 8000 8000 10000 15000 15000
This machine is not a standard machine, any parameters can be customized according clients’ requirements, so any further information please contact with us, our skilled engineer team will give you the most professional and cost-effective solutions.

JX Abrasives Standard Direct Drive Blast Wheel With High Performance

JX Shot Blasting Machine offers upgraded transport technology, high-efficient blast wheels and multiple machine sizes and types adhere to the customer’s shot-blasting needs. If you have special requirements, please download Blasting Equipments Questionnaire for your reference.
